Profiling#

The profiler ships with the compiler, so finding out where a program spends its time costs a flag rather than a dependency. Two channels answer different questions, and a slow program usually needs both:

nupp run --profile app.nupp       # where the time went
nupp run --jit-aborts app.nupp    # whether it ran compiled

Whether it ran compiled is the question a conventional profiler cannot answer, and on LuaJIT it is usually the one that matters. Code the compiler refused runs an order of magnitude slower than code it took, and nothing says so out loud: the function looks the same, it is not fast.

Both channels are also an API. A session satisfies profile.Session, whose associated Report is whichever report the channel behind it produces, so a helper written once over the lifecycle still hands back the concrete one:

local profile = nupp.profile

local function finish<S is profile.Session>(session: S): S.Report
    return session:stop()
end

local samples: profile.SampleReport = finish(profile.sample())
local aborts: profile.TraceReport = finish(profile.trace())

See Associated types for what S.Report resolves to at each call.

Sampling a program#

nupp run --profile app.nupp

A timer interrupts the program and writes down the stack. That fills profile.out with collapsed-stack text, and prints a summary:

nupp: 2043 samples on 61 stacks every 10ms, written to profile.out

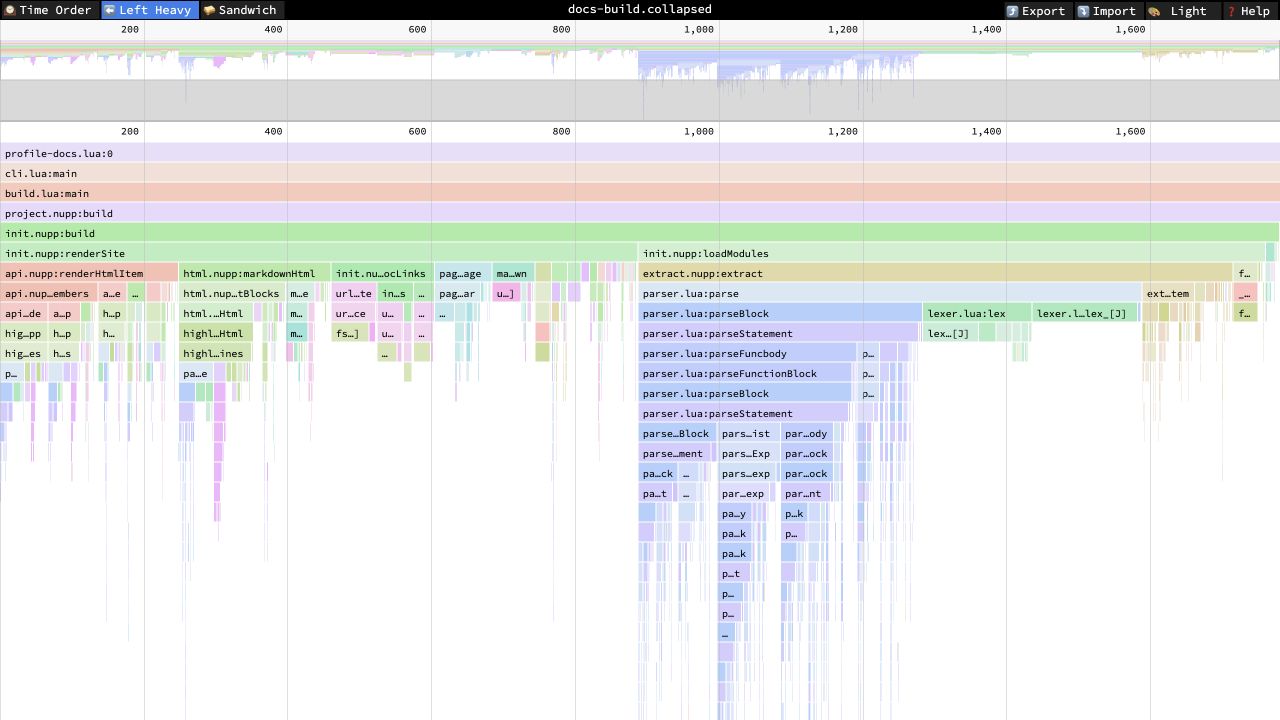

Drop profile.out on speedscope.app and you have a flame graph. --profile=2 samples every 2 ms instead of the default 10; below about 10 the timer begins taking real time from the thread it is measuring, so spend a fine interval on a short window. --profile-out puts the text somewhere other than profile.out.

Stack lines#

Each line is one stack: frames separated by semicolons, then the sample count.

frame;physics;app.nupp:0;app.nupp:step_[N] 431

The leaf carries the VM state most of that stack's samples were in:

• _[N]: running compiled machine code.
• _[I]: in the interpreter.
• _[C]: inside a C function.
• _[G]: in the garbage collector.
• _[J]: inside the JIT compiler.

_[I] on something hot is the finding. The compiler is not running that code, and --jit-aborts says why.

Frames the report omits#

The stacks start at your program. The frames underneath it, the loader that read it and the pcall that guards it, belong to nupp run rather than to what you asked about, so they are cut.

LuaJIT also inlines a compiled call chain into a single trace, and inlined frames are not on the stack to be walked, so a hot call chain arrives shorter than it reads in the source. That is the compiler doing its job, not the profiler losing frames.

Zones#

Frames say which function ran. Zones say which phase it ran in, and that is usually the question, because the same sort called from loading and from rendering is two different problems.

nupp.profile.zone is a stack of names that the profiler reads:

local zone = nupp.profile.zone

local function frame()
    zone.push("frame")

    zone.push("physics")
    stepWorld()
    zone.pop()

    zone.push("render")
    drawWorld()
    zone.pop()

    zone.pop()
end

Samples taken inside those pushes lead with the zone path, so the flame graph opens on your phases and drills into the code under each:

frame;physics;app.nupp:stepWorld_[N] 812
frame;render;app.nupp:drawWorld_[N] 233

Push and pop are intrinsics#

Pushing and popping costs nothing while no profiler is listening, because the module checks one boolean and returns. While a session is running, the cost is the call itself, and a call on the hottest path can stop a trace forming.

So push, and a pop whose result is discarded, are lowered rather than called. Written in statement position on a receiver that is a bare local zone = nupp.profile.zone, they are generated inline against the module's own state, leaving nothing on the hot path to pay for.

Mark warm paths rather than the innermost loop even so. Every other form calls through the ordinary API, and enter and leave always do. See performance.md for the other lowerings a build applies.

enter and leave#

Use zone.enter and zone.leave in place of push and pop when the two halves might not run in the same session, such as a coroutine resumed after the profile stopped. enter hands back a token that a late leave discards rather than popping somebody else's zone:

local token = zone.enter("request")
serveRequest()
zone.leave(token)

Trace aborts#

nupp run --jit-aborts app.nupp

That writes jit-aborts.csv:

severity,count,reason,location,zone
warn,7,NYI: bytecode FNEW,app.nupp:41,frame/spawn

Each row is one place the compiler gave up, how often it did, and which zone was open. severity orders the file:

• blacklist: always worth fixing. The trace is demoted to the interpreter for the rest of the process and is never retried.
• warn: a refusal. Whether it matters depends on whether it is hot, which is what the sampling channel is for.
• info: trace formation working as designed, such as a loop being left or recursion being found. Left out unless you ask for it.

NYI: bytecode FNEW above is a closure being created inside a loop, which LuaJIT will not record. Hoisting the closure out of the loop is the fix, and running again is how you find out whether it was the only one. See LuaJIT trace checking for the whole reason catalog, source, bytecode, editor and runtime alike, with an example of every current diagnostic.

Structured output#

nupp run --jit-aborts=jit-aborts.json --json app.nupp

Each site keeps the raw VM detail and adds a stable reasonId and class, and the report names the exact trace profile and reason catalog it was produced under. CSV is unchanged for existing consumers.

Profiling from a program#

The flags are a thin wrapper over nupp.profile, which is worth using directly when the interesting window is not the whole run: a single frame, one request, or the part after warm-up.

local profile = nupp.profile

local session = profile.sample({intervalMs = 2, zone = "frame/render"})
renderEverything()
local report = session:stop("render.out")

print(report.samples, report.stacks)

stop ends the session and returns the report, whose tostring is the text that was written. pause and resume leave a window out without ending anything, which is how a benchmark keeps its own setup out of the numbers.

The zone option narrows the report at stop rather than filtering while sampling, so it costs nothing at runtime. The prefix is fixed when the session starts: what fell outside it was still collected, but the report cannot be widened afterwards.

Collecting aborts#

The trace channel has the same shape:

local session = profile.trace()
runTheWorkload()
local report = session:stop()

if report.blacklisted > 0 then
    print(tostring(report))
end

Session lifecycle and cost#

Both channels attach to VM hooks, which are process-wide, so one session of each kind runs at a time. Starting a second while one is live is an error rather than a silent replacement, and a handle dropped without stopping leaves the timer running or the hook attached for the rest of the process.

Neither channel is free. A sample session pays a timer interrupt, a stack walk and a table write at every interval; a trace session pays a callback inside the compiler at every abort. Stop a session once the question it was opened for has an answer.
